Fruits & vegetables drying lines

Fruit & Vegetable Drying Lines (500 kg/h – 5 Tons/Hour)

Overview

VegTech Systems, in partnership with Bigtem, offers advanced fruit and vegetable drying lines designed for efficient dehydration of a wide range of produce, including broccoli, garlic, onions, peppers, carrots, dill, and various fruits and vegetables. With capacities from 500 kg/h to 5 tons per hour, these systems are ideal for producing high-quality dried, shelf-stable, or ingredient-ready products.

Using optimized hot air drying technology, the system preserves natural flavor, color, and nutritional value, ensuring premium dried products for food processing, retail, and export markets.



Complete Drying Process

The integrated drying line covers all stages of processing:

  • Receiving & Feeding
    Fresh produce is received and conveyed into the processing line.
  • Washing & Cleaning
    Efficient washing removes soil, debris, and contaminants.
  • Trimming & Cutting
    Produce is prepared for uniform drying (e.g., carrots sliced into rounds, onions into rings).
  • Hot Air Drying
    Products are dried on trays or conveyors using controlled hot air (40–120°C) for 1–5 hours, reducing moisture to optimal levels:
    • Garlic: ~5% moisture
    • Peppers: ~10% moisture
    • Other vegetables: 5–15% depending on product
  • Cooling
    Dried products are cooled to ambient temperature to stabilize quality.
  • Conveying & Packaging
    Final product is transferred for packaging or further processing.

Key Benefits

  • Wide capacity range: 500 kg/h to 5 tons/hour
  • Retains flavor, color, and nutrients
  • Produces high-quality dried fruits and vegetables
  • Energy-efficient hot air drying system
  • Hygienic food-grade stainless steel construction
  • Suitable for small to industrial-scale operations
  • Flexible for multiple product types

Video

Dried Apricot Processing Line Equipment

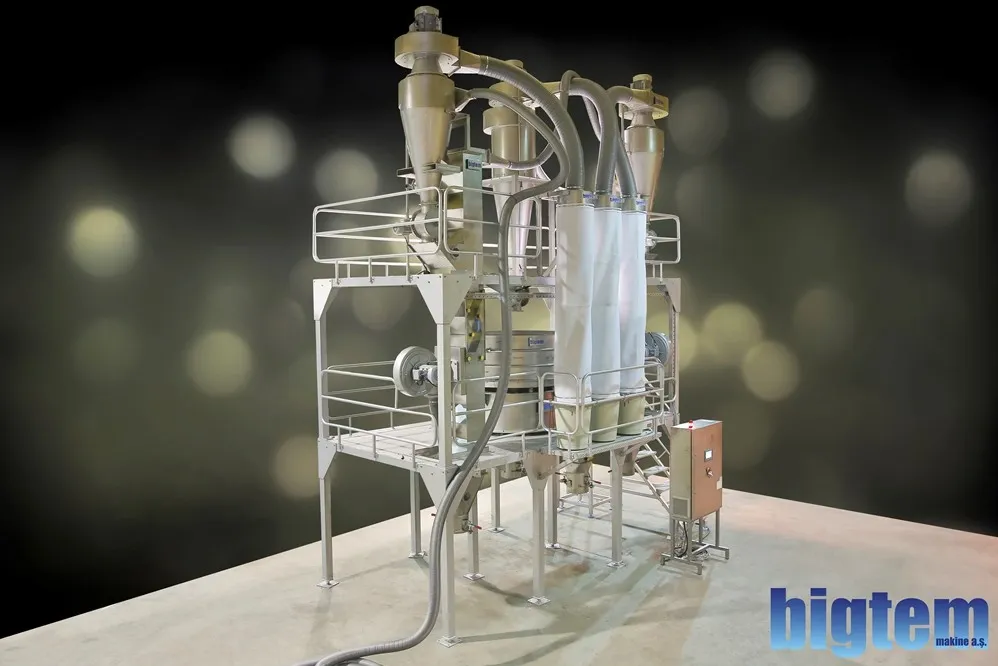

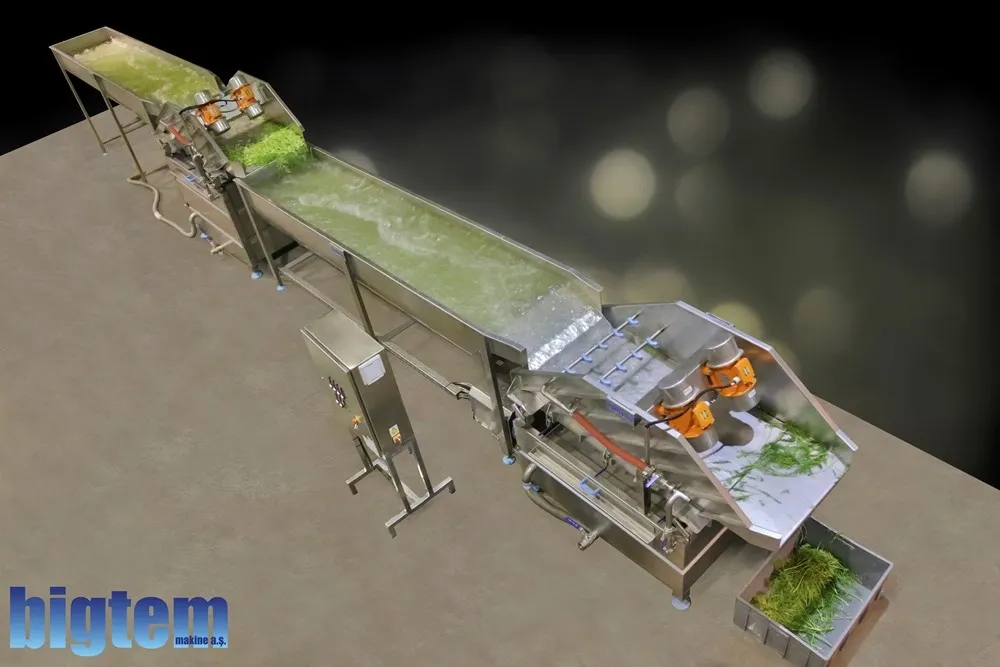

Dill Preprocessing & Cyclone Separation Line

Get a Quote

Tell us your capacity targets and we’ll design the right line for your facility.

Manufactured by Bigtem Makine A.Ş. · Istanbul, Turkey · Est. 1973

Technical Specifications

Intake Conveyor

500 kg/h – 5 tons/h | 1–3 kW

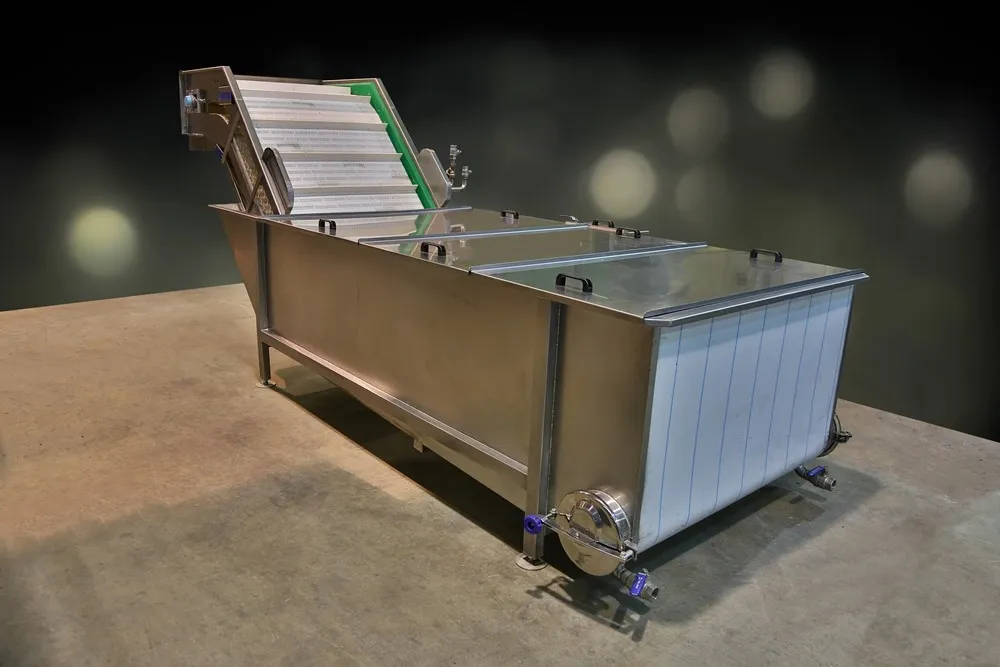

Washing Unit

1–4 m³/h water (4 bar) | 2–5 kW

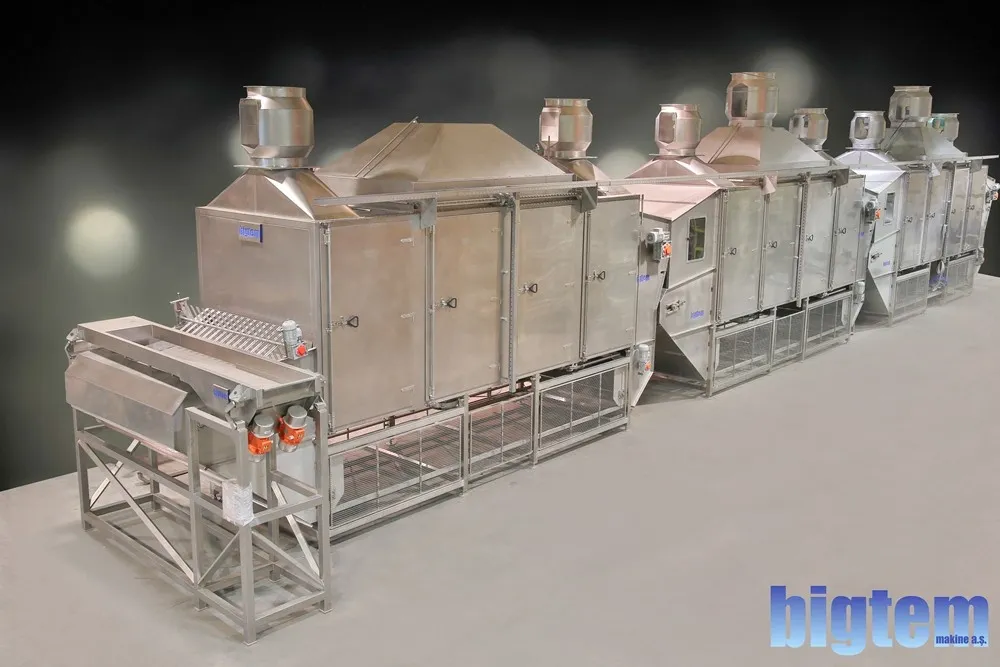

Drying Chamber

40–120°C | 20–50 kW | 50–150 L/min air (6 bar)

Cooling Section

5–15 kW | Ambient air

Output Conveyor

2–6 kW

Downloads

DILL PREPROCESSING & CYCLONE SEPARATION LINE (pdf)
